Transmission Conductor HTLS - High Temperature Low Sag Conductor

FOB Reference Price:Get Latest Price
US $800-9,000 / Kilometers | 2 Kilometer/Kilometers HTLS Conductor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Kosen Cable
Model Number:
HTLS Conductor
Conductor Material:
Aluminum
Number of Conductors:
Single
Application:
Overhead
Conductor:
Annealed 1350 aluminum
Conductivity:
63% IACS
Shape of conductor:
Round or Shaped Aluminum Wire
Sectional area:
15-1500mm2
Reinforced core:
Steel or Composite Core
Construction:
Concentrically stranded
Packing:
Steel-wooden drum
Standard:
IEC, ASTM, BS
Certificate:
ISO9001/ISO14001/OHSAS18001
International Tender:
Applicable
SupplyAbility
SupplyAbility:
50 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
wooden drum, steel-Wooden Drum, iron-wooden drum or as your requirements.
Port
Qingdao
Lead Time :
30 days
Product Description

Transmission Conductor HTLS - High Temperature Low Sag Conductor

Standard

IEC, ASTM



Application

For power transmission line work



Product Details

1. HTLS Conductors

HTLS conductors solve the challenges of higher temperature and higher tensile strength by using annealed aluminium or aluminium alloy conductors and a high tensile strength core which carries both the weight and the tension in the conductor span. Cores may be of metallic or composite material construction.

Low sag conductors make use of an inner core with higher tensile strength than the aluminium conductors. This allows higher tension to be applied to the conductor which allows reduced sag. Several materials have been used. Low sag conductors are designed with a centre core of a material that has a higher tensile strength than the aluminium conductor.





2. Conductor ACSS/TW

    Aluminum Conductor Steel Supported/ Trapezoidal Wire



 ACSS/TW conductor meets or exceeds the following ASTM specifications:


• B500 Metallic Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced.
• B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.
• B802 Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced.
• B803 High-Strength Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum and Aluminum-Alloy
   Conductors, Steel Reinforced.
• B857 Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Supported (ACSS/TW).





3. Conductor ACSS/AW

    Aluminum Conductor Aluminum-Clad Steel Supported



 ACSS/AW conductor meets or exceeds the following ASTM specifications:


• B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.
• B502 Aluminum-Clad Steel Core Wire for Aluminum conductors, Aluminum-Clad Steel Reinforced.
• B856 Concentric-Lay-Stranded Aluminum Conductors, Coated Steel Supported (ACSS).


   The strandings available are identical to those listed in ASTM specification B232





4. Conductor ACCC

    Aluminum Conductor Composite Core



♦ Ampacity

Carry twice the current of a conventional conductor.
Lighter core allows the use of 28% more aluminum without a weight penalty.



♦ Reduced Line Loss

Under equal load conditions reduces line losses by 30 to 40% compared to conductors of the same diameter and weight.



♦ Longer Spans

Greater strength, effective self-damping and superior fatigue resistance allows increased spans between fewer or shorter structures.



♦ Strength/Weight

Hybrid Carbon Composite Core is stronger and lighter than steel core.



Packaging & Delivery

Steel wooden drum with full lagging

Steel-wood drum

Wood drums shipped

Steel-wood drums shipped



Our Services
With its top engineering capacities and strict production procedures, Kosen Cable has become a recognized cable manufacturer in China. The services we provide include:

Pre-sale Services

1. Technical consultation
2. Recommending right cable size and packaging solution according to customer’s requirements and quantity
3. Standard and customer-tailored cable sizes available

After-sale Services

1. Factory visit available before placing the order
2. Products inspection before the shipment
3. Engineer instruction & supervising for installation available

Company Introduction

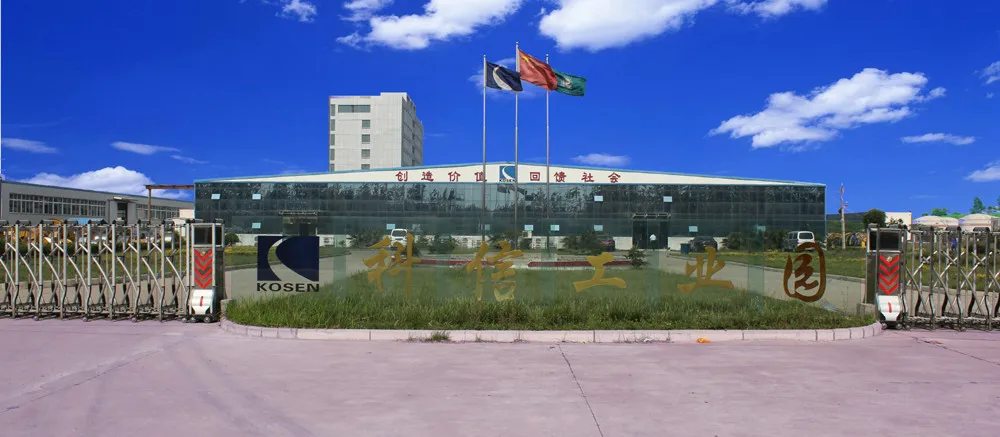

Henan Kosen Cable Co., Ltd. is founded in 1993 as a company under State Grid of China and is specialized in the R&D, production and sales of power cables, conductors, ground wire, telecommunication cable and communication equipment.


Currently the company can provide 25 kinds of products with over 170 models and 2000 specifications. Its low and high voltage XLPE insulated cable, PVC insulated cable, branch cable, aerial bundle cable (ABC Cable), control cable, mining cable, rubber cable, aluminum conductor (AAC Conductor), aluminum conductor steel reinforced (ACSR Conductor), all aluminum alloy conductor (AAAC Conductor), aluminum conductor alloy reinforced (ACAR Conductor), high temperature low sag conductor (HLTS Conductor, ACSS/TW Conductor) can not only meet the national standard requirements, but also meet the requirements of international standards such as IEC, ASTM, BS, DIN, etc. The production, management and products of the company have been certified by ISO 9001 Quality Management System, ISO 14000 Environmental Management Standard, ISO 18000 Occupational Health & Safety Management System and China Compulsory Certificate (CCC).



Kosen Cable -  For A Progressive Transmission.
